Meet The Arrow — .204
Meet The Arrow — Tooth of the Arrow’s premium .204” small-diameter carbon hunting arrow shaft, built for maximum penetration, speed, and downrange efficiency. Designed with a lightweight non-woven carbon construction, this shaft is built to cut through wind and drive deep.
Built for hunters. Trusted by shooters. These shafts don’t just fly — they hit hard.
Our Recommendation: Best suited for intermediate to advanced bowhunters and DIY arrow builders looking to maximize penetration and optimize their build. Shafts come cut to length, and customers must fletch vanes and install inserts for a fully customized setup.
For Hunters: Ideal for deer, antelope, and other medium game where penetration and accuracy matter most — especially in mid to long-range shots (30–80+ yards).

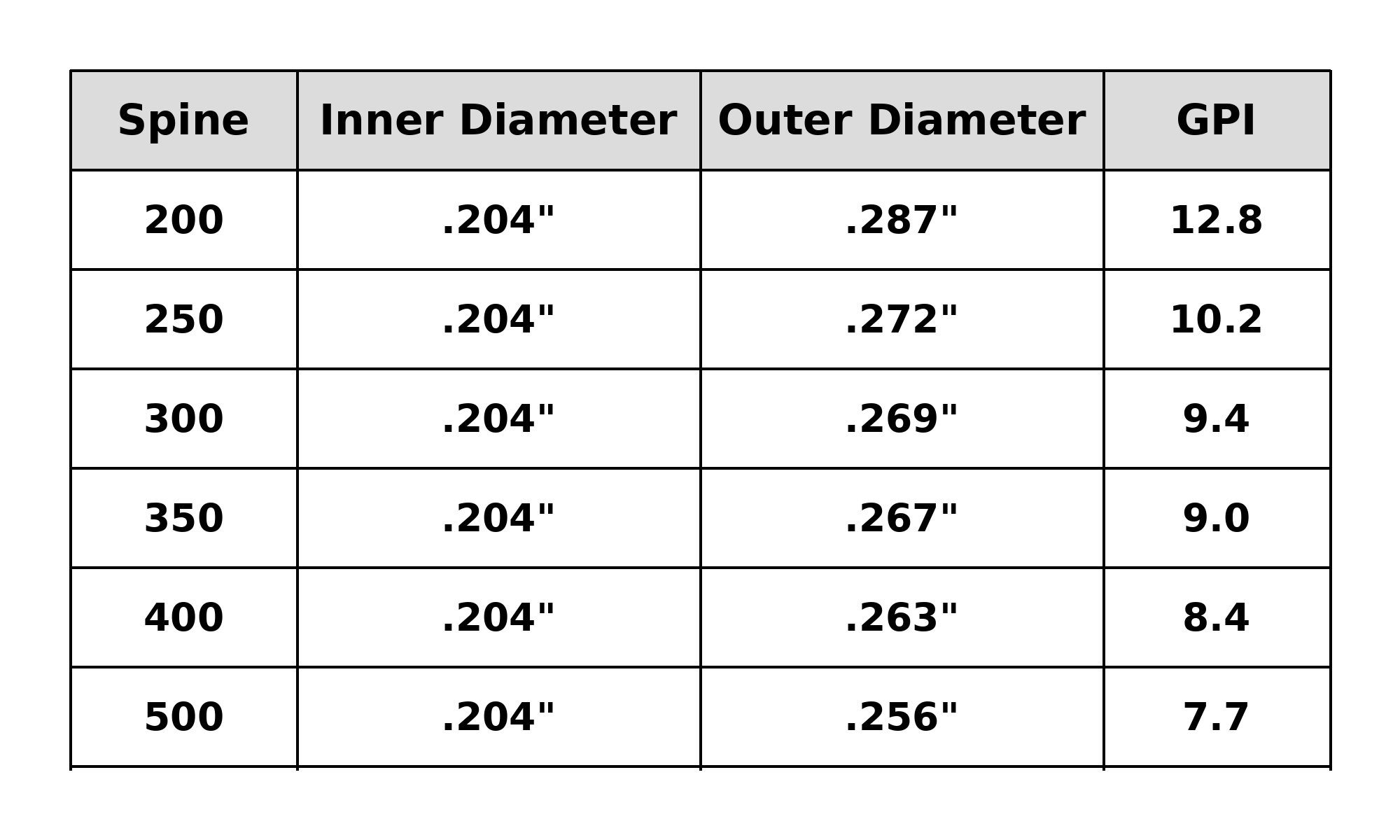

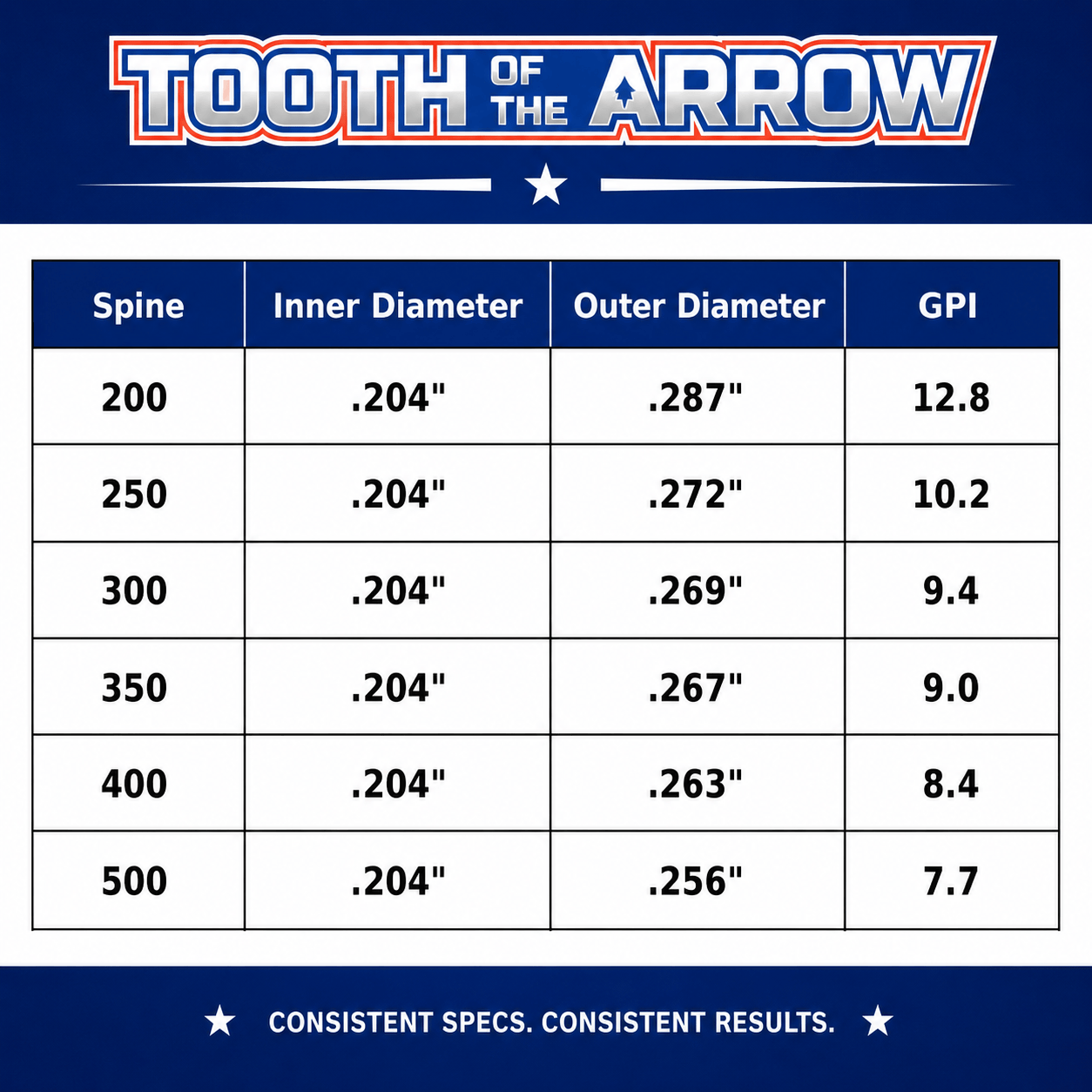

Tech Specs – .204” | 5mm Carbon Hunting Arrow Shafts
Material: Non-woven carbon fiber
Inner Diameter (in): 0.204”
Outer Diameter (in): 0.272” (250), 0.269” (300), 0.267” (350), 0.263” (400)
Straightness Tolerance: ± 0.003”
Spine Options: 250, 300, 350, 400
GPI (grains per inch): 10.2 (250), 9.4 (300), 9.0 (350), 8.4 (400)
Length Options (in): Cut to order in 0.25” increments
Nocks: Standard white .204 nock
Insert / Half-Out: Included loose 50 grain stainless steel half-outs
Weight Tolerance: ± 2 grains
These premium .204” carbon arrow shafts are built from non-woven carbon fiber with a tight ±0.003” straightness tolerance and spine options from 250 – 400.
Their micro diameter profile reduces wind drift and increases penetration, giving you better downrange performance when it matters most. Each shaft is cut to length in 0.25” increments and includes components for custom installation, making them perfect for hunters and DIY archers looking to build a high-performance setup.
Features
.204” / 5mm Micro Diameter – Less wind drift. Deeper penetration. Better energy retention downrange.
Lightweight Carbon Construction – Built for speed without sacrificing performance.
Non-Woven Carbon Build – Straight fiber alignment for consistency, weight savings, and clean performance.
Spine Options – Available in 250, 300, 350, and 400 spines for precise tuning.
Tolerances – ±0.003” straightness and ±2 grain weight tolerance for consistency shot after shot.

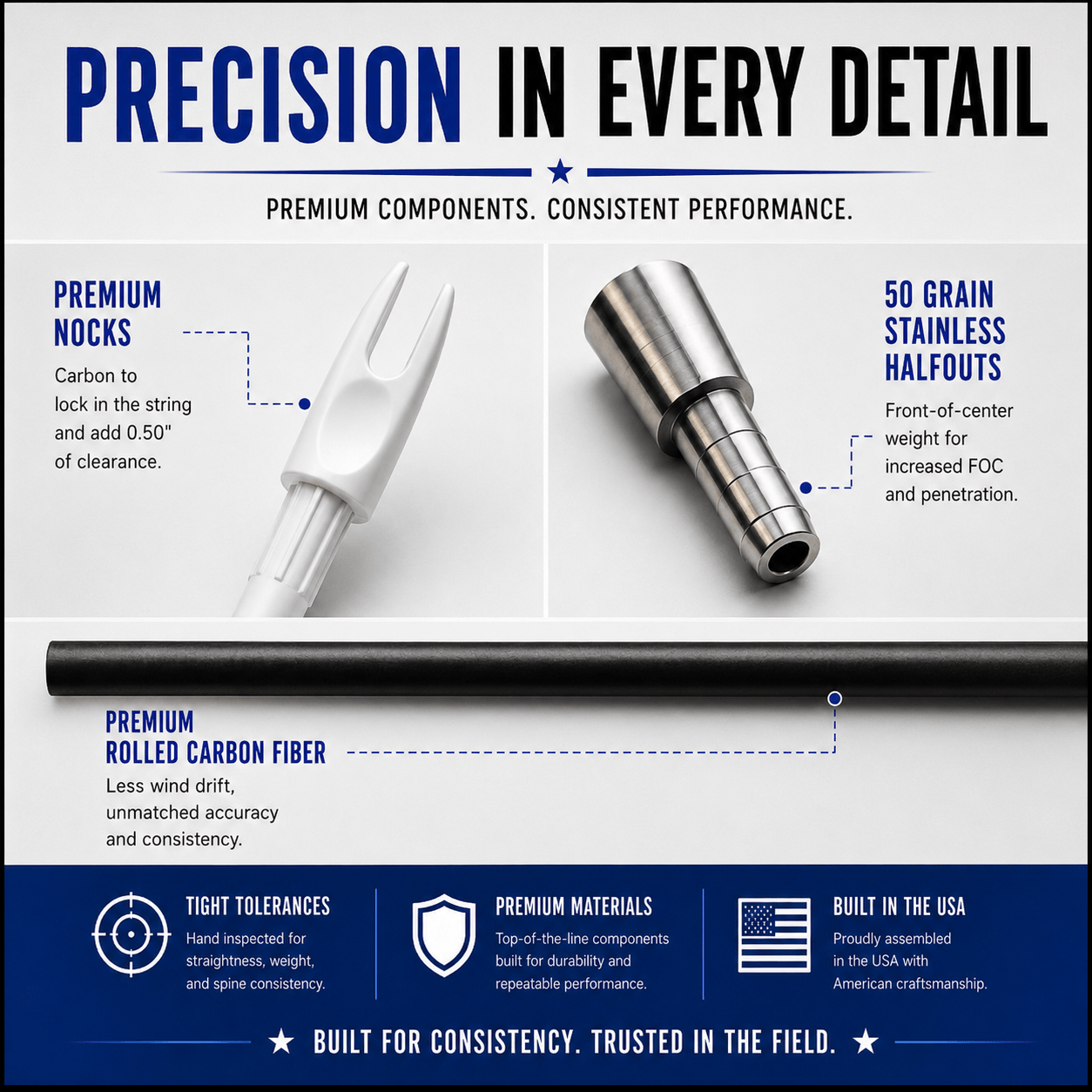

Components – Includes inserts/half-outs and white Signature Nocks (loose for install).
Length Options – Free arrow cutting to your desired length. Standard nock adds 0.25”, insert/half-out adds 1.00”.
If you are not sure which shaft is best for you, please reach out to us at customercare@toothofthearrowbroadheads.com and review our spine selector tool.
Before use, review all safety instructions.

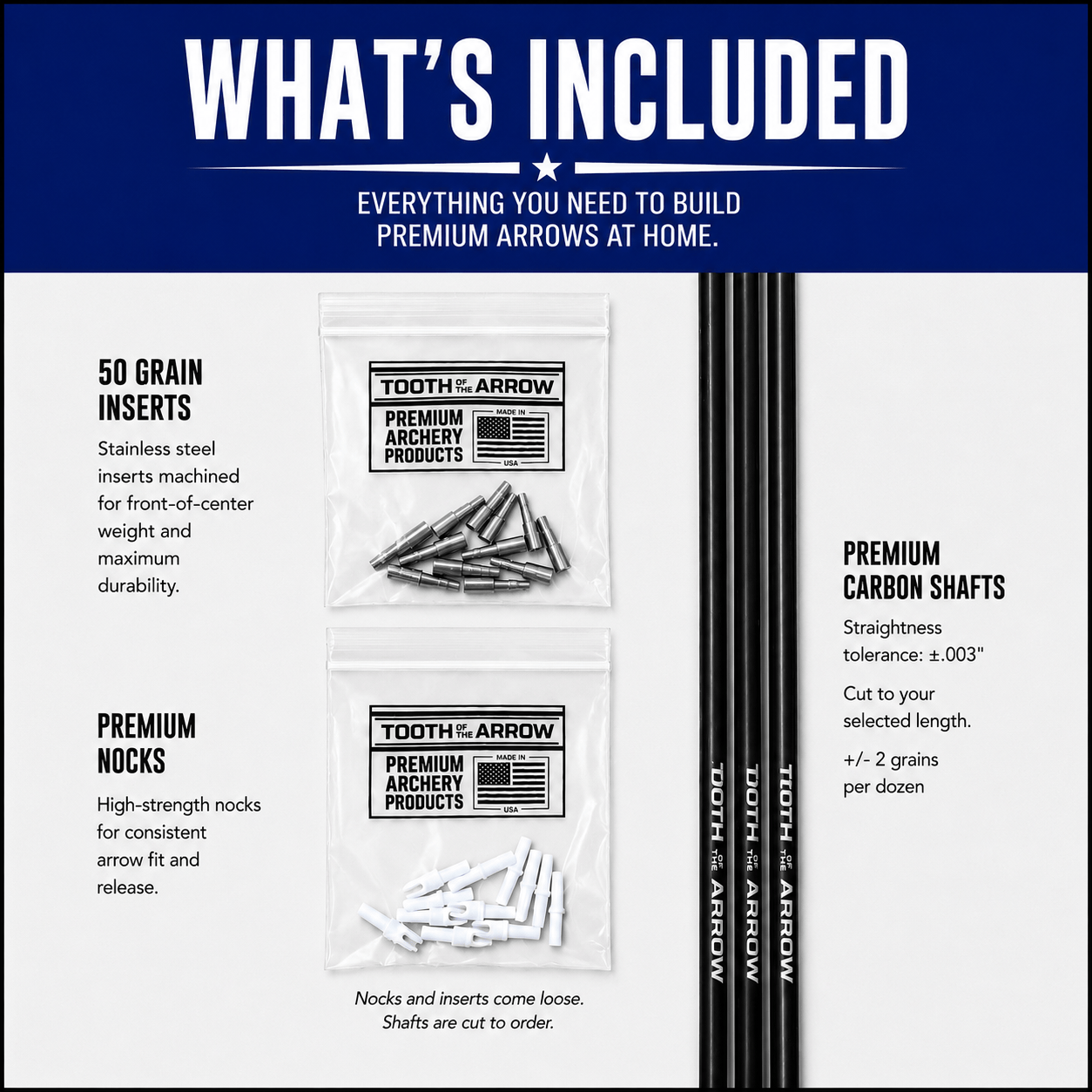

What’s Included
Each pack of The Arrow .204” Carbon Hunting Shafts includes:
-
6, 12, or 24 premium shafts (choose your quantity)
-
All shafts cut to your specified length
-
White .204" nocks, included loose for custom installation
-
Inserts / half-outs, included loose for custom installation
FAQ
Q: Do these shafts come fletched or bare?
A: By default, shafts are sold bare and cut to your requested length. White .204 nocks and components are included loose for custom installation. We also offer prefletched options on select configurations.

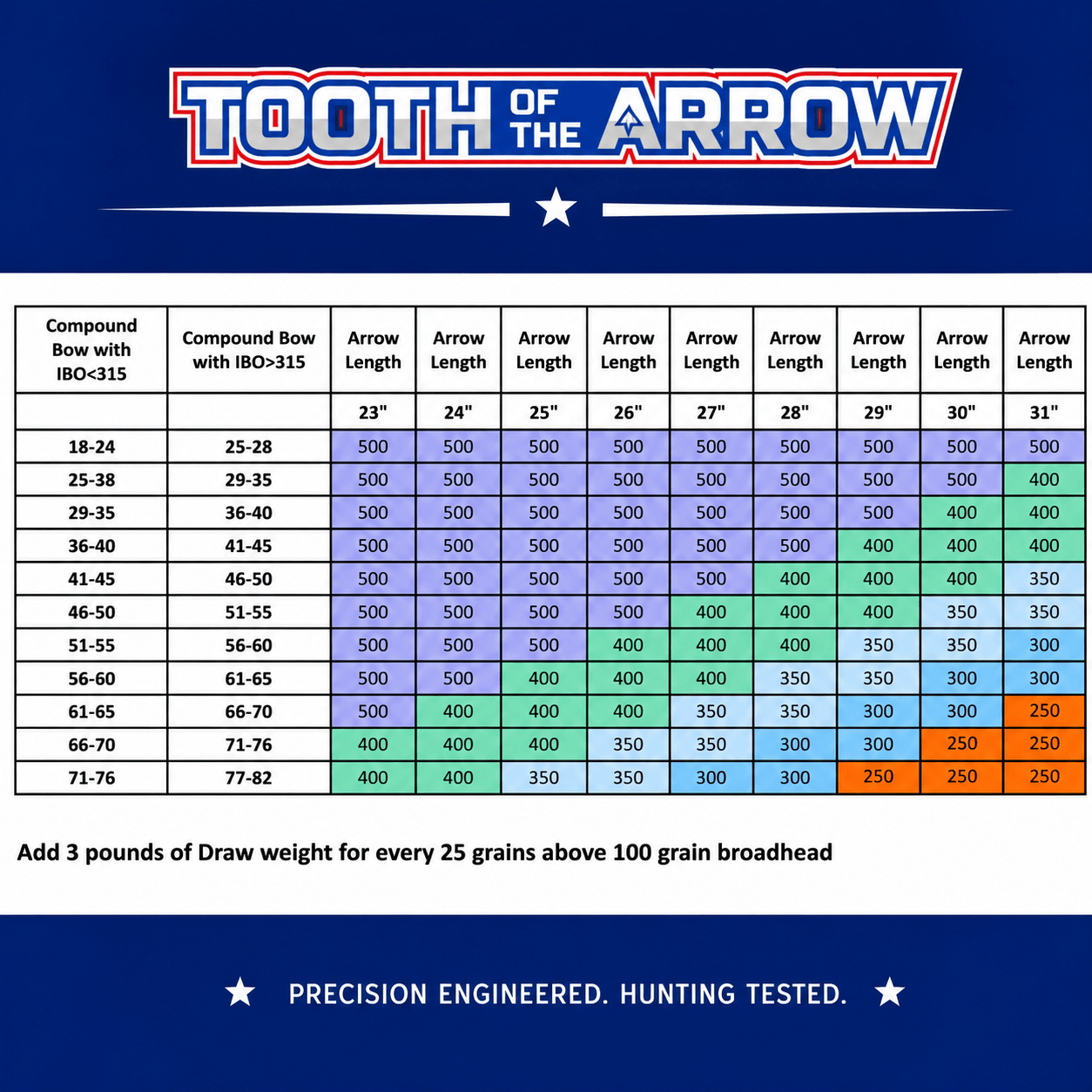

Q: How do I choose the correct spine?
A: Spine depends on draw weight, arrow length, and point weight. Use our Spine Selector Tool or email us at customercare@toothofthearrowbroadheads.com and we’ll help you dial it in.
Q: Will you cut the arrows to my length?
A: Yes. We offer free arrow cutting in 0.25″ increments. The nock adds 0.25″ and the insert/half-out adds 1.00″ to total length.
Q: Are these compatible with standard .204 components?
A: Yes. These shafts use a .204″ (5mm) inner diameter and are compatible with most .204 ID components. Included components are designed for a precise fit.
Q: What tolerances can I expect?
A: All shafts are built to ±0.003″ straightness and ±2 grain weight tolerance.
Q: What’s your return policy on cut shafts?
A: Cut shafts are non-returnable unless there’s a manufacturing defect. Uncut shafts can be returned if unused and in original packaging.
Q: Can these be used for both hunting and target shooting?
A: Absolutely. The .204″ small diameter improves penetration and wind performance for hunting, while tight tolerances make them excellent for target and 3D shooting.
