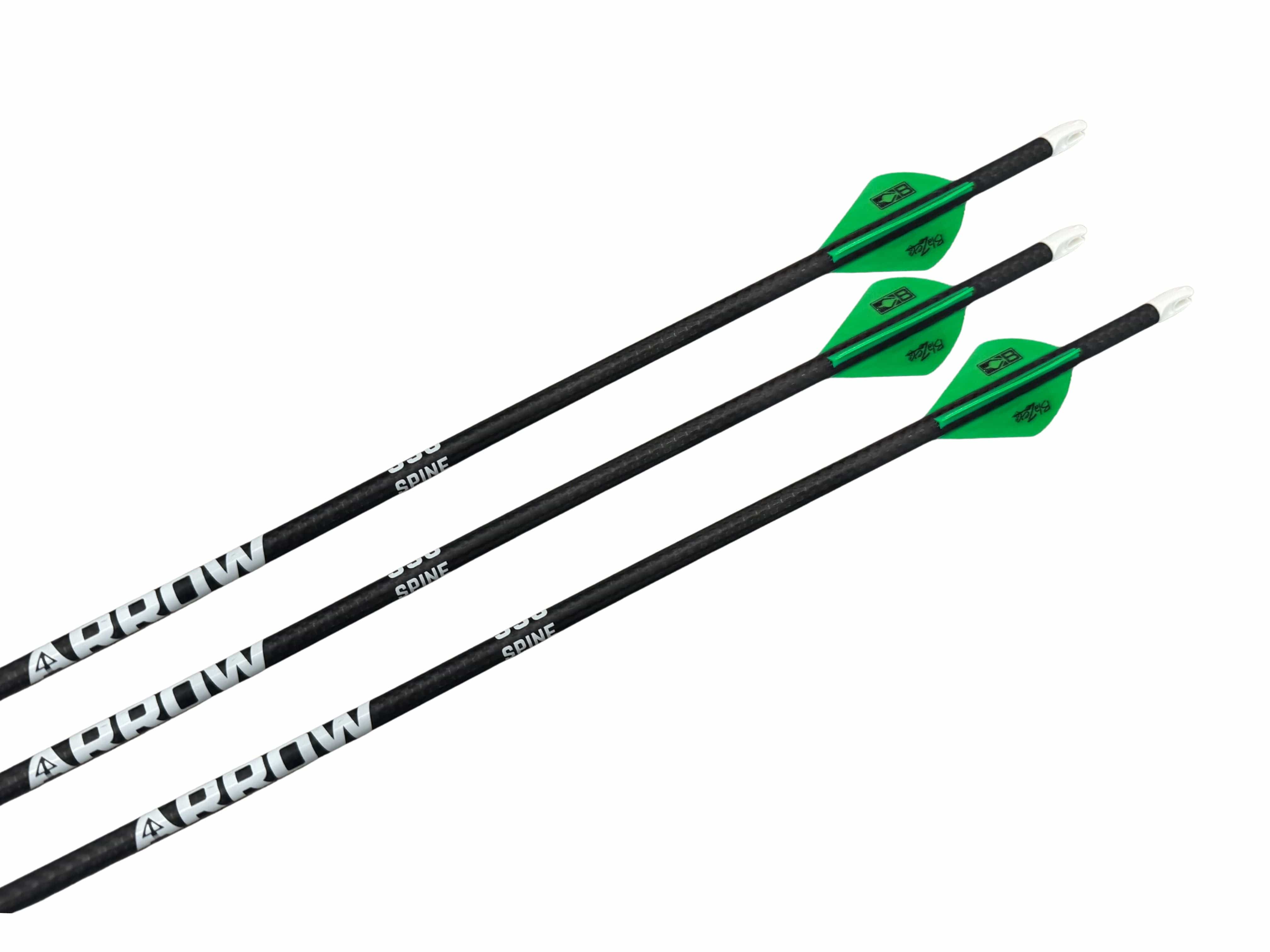

Meet The Arrow — Tooth of the Arrow’s flagship .204” small-diameter carbon hunting arrow shaft, engineered for strength, precision, and downrange performance. Built with thick carbon walls, this shaft is designed to punch through game and targets alike.
Built for hunters. Loved by 3D junkies. These shafts don’t just show up — they dominate.
Our Recommendation: Best suited for medium to advanced bowhunters. Arrows come cut to length, and are prefletch. Customers must install inserts.
For Hunters: Ideal for deer, antelope, and other small to medium game, especially for close to mid-range shots (20–60 yards).
Tech Specs – .204” Carbon Hunting Arrows
Material: 3k woven carbon fiber
Inner Diameter (in): 0.204"
Outer Diameter (in): 0.287” (200), 0.281” (250), 0.272” (300), 0.267” (350), 0.266” (400), 0.256” (500)
Straightness Tolerance: ± 0.003”
Spine Options: 250, 300, 350, 400, 500
GPI (grains per inch): 12.8 (200), 10.9 (250), 10.6 (300), 9.4 (350), 8.7 (400), 7.7 (500)
Length Options (in): Cut to order in 0.25” increments
Fletching: 3 × 2.0” Blazer vanes, right 1.5° helical †
Nocks: Standard white .204 nock
Insert / Half-Out: Included loose: stainless steel half-outs (50 gr)
Weight Tolerance: ± 2 grains
These premium .204” carbon arrow shafts are made from 3K woven carbon fiber with a tight ±0.003” straightness tolerance and spine choices from 250 – 500.
Their precision GPI profiles deliver reliable broadhead flight and 3D performance. Each shaft is cut to length in 0.25” increments, prefletched and includes 50-grain stainless steel half-outs (loose), making them perfect for hunters and DIY archers looking for a custom, high-strength build.

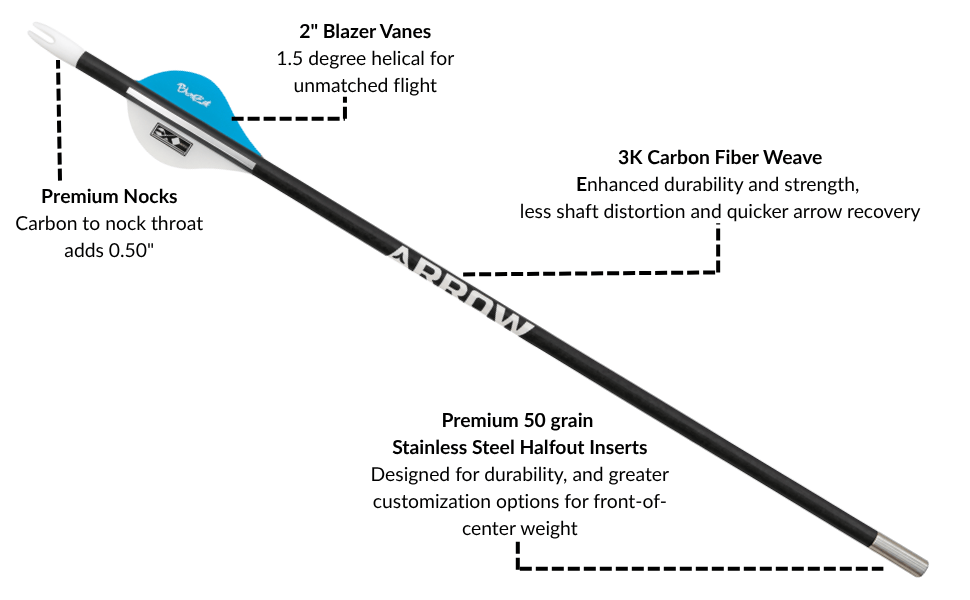

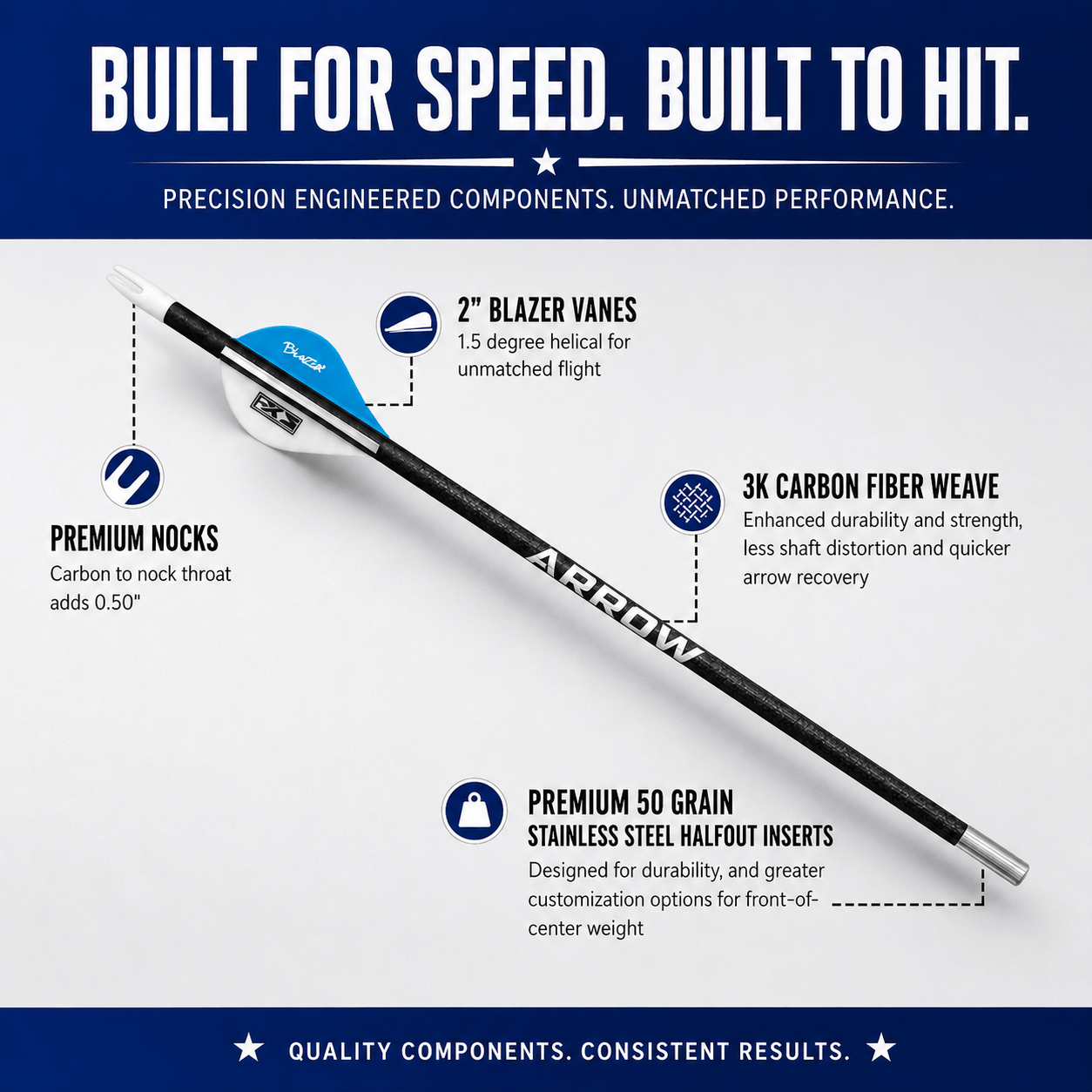

Features
.204” / 5mm ID Small Diameter – Tougher walls. Straighter flight. Deeper hits. Less wind drift. No-brainer.
Premium Carbon Construction – High-strength carbon fibers and resins. No filler garbage.
Woven 3K Carbon Exterior – Not just for looks. This outer weave packs a punch when it comes to strength and longevity.
Spine Options – Available in 250, 300, 350, 400, and 500 spines for precision tuning.
Tolerances – ±0.003” straightness or tighter. Weight tolerance within ±2 grains for unmatched consistency.
Components – Includes premium 50-grain stainless steel half-outs and our clean white Signature Nocks.

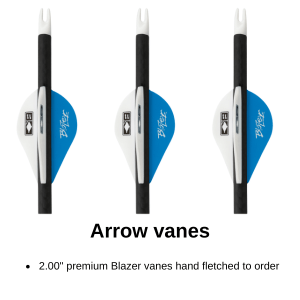

Vanes - All arrows come prefletched with 3, 2.00" Blazer Vanes
Length Options – Free arrow cutting to your desired length. Standard nock adds 0.25”, half-out adds 0.50”.
If you are not sure which shaft is best for you, please reach out to us at customercare@toothofthearrowbroadheads.com and review the our spine selector tool.
Before use, review all safety instructions.

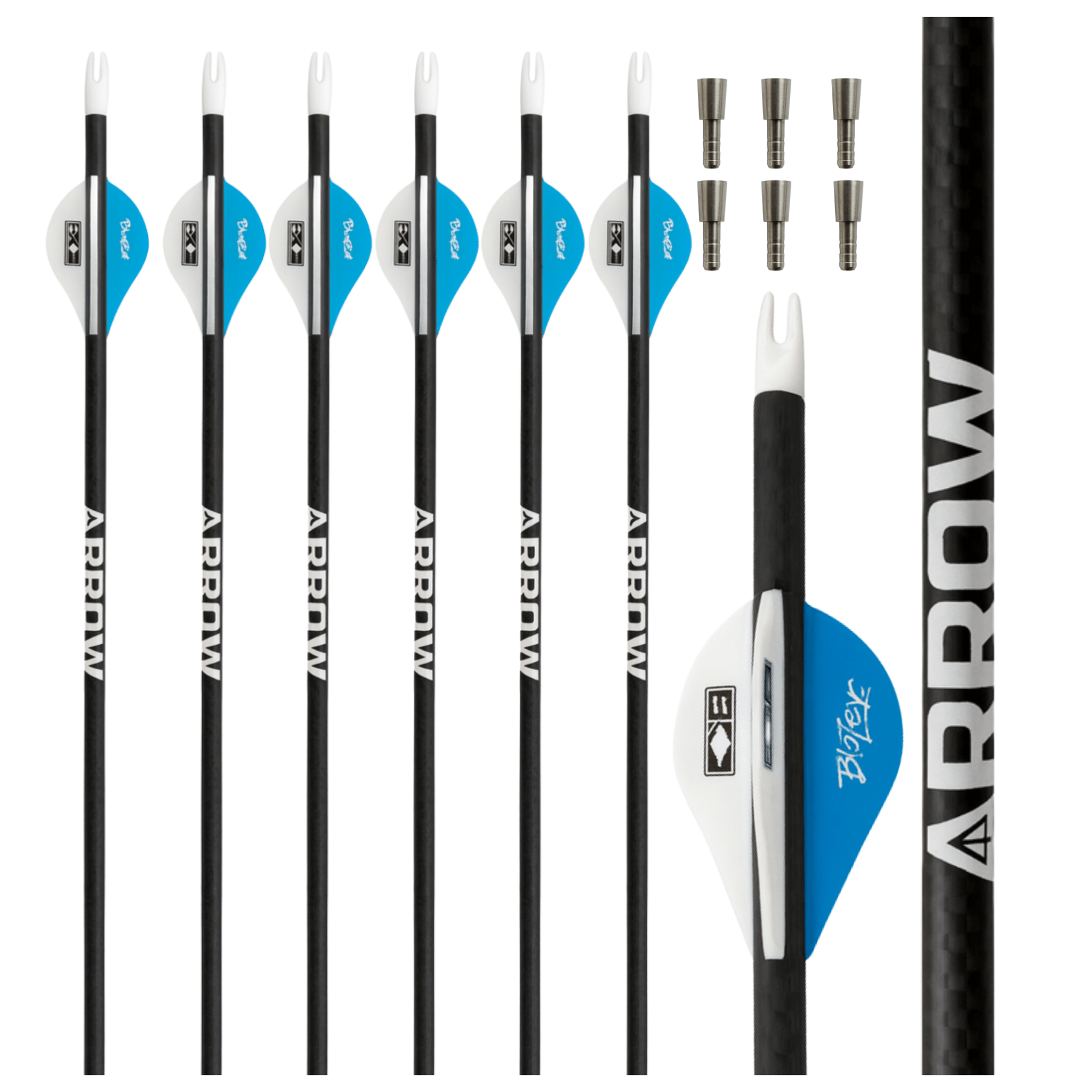

What's Included
Each pack of The Arrow .204” Carbon Hunting Arrows includes:
6 or 12 premium prefletched shafts (choose your quantity)
All shafts cut to your specified length
White .204 nocks, included
50-grain stainless steel half-outs, included loose for custom installation
3 × 2.0” Blazer vanes, right 1.5° helical †
FAQ
Q: Do these shafts come fletched or bare?
A: By default, these shafts are sold prefletched and cut to your requested length. White .204 nocks and 50-grain stainless half-outs are included. We also offer bare shaft options for the DIY bowhunter.
Q: How do I choose the correct spine?

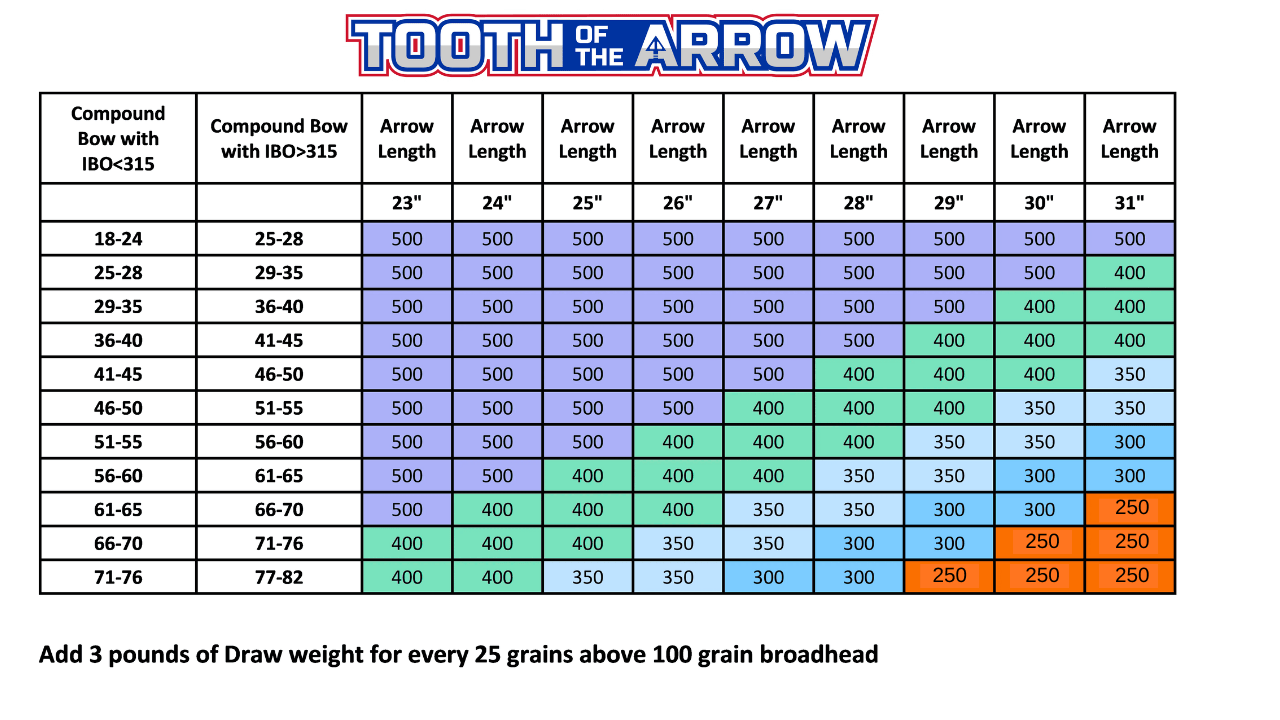

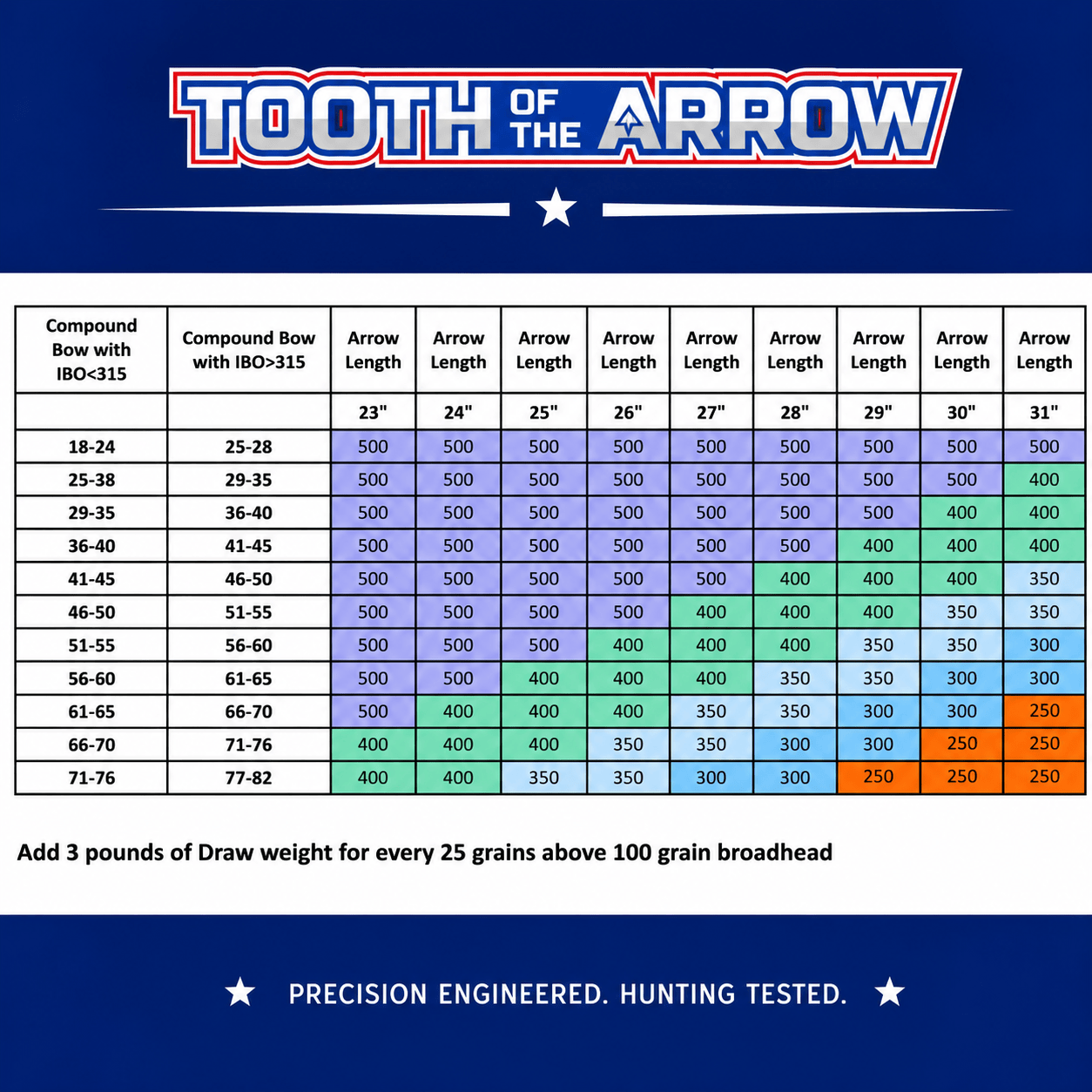

A: Spine depends on draw weight, arrow length, and point weight. Use our Spine Selector Tool or email us at customercare@toothofthearrowbroadheads.com with your bow specs, and we’ll help you pick the right spine for your setup.
Q: Will you cut the arrows to my length?
A: Yes. We offer free arrow cutting in 0.25″ increments. Just select your desired finished shaft length before checkout. Keep in mind the standard nock adds 0.25″ and the half-out adds 0.50″ to total length.
Q: Are the shafts compatible with standard .204 inserts and components?
A: Yes. These shafts use a .204″ (5 mm) inner diameter, which is compatible with most .204 ID components, including aftermarket half-outs and outserts. Our included 50 gr stainless half-outs fit seamlessly.
Q: What tolerances can I expect?
A: All shafts are built to ±0.003″ straightness and ±2 gr weight tolerance. GPI and OD vary slightly by spine, and all specs are listed in the Tech Specs tab above.
Q: What’s your return policy on cut shafts?
A: Because custom-cut arrows are made to order, cut shafts are non-returnable unless there’s a manufacturing defect. Uncut shafts can be returned within our standard return window if they are unused and in original packaging.
Q: Can these be used for both hunting and target shooting?
A: Absolutely. The thick-walled .204″ profile delivers excellent penetration and wind performance for hunting, while the tight tolerances and 3K woven carbon construction make them ideal for 3D and target shooters.
